Rendering an Infinite Grid

September 01, 2025

I've been working on a little VR project for a while, and one of the first things I needed at the start was something to stand on. So I made an infinite grid to be my floor. Here's how it works.

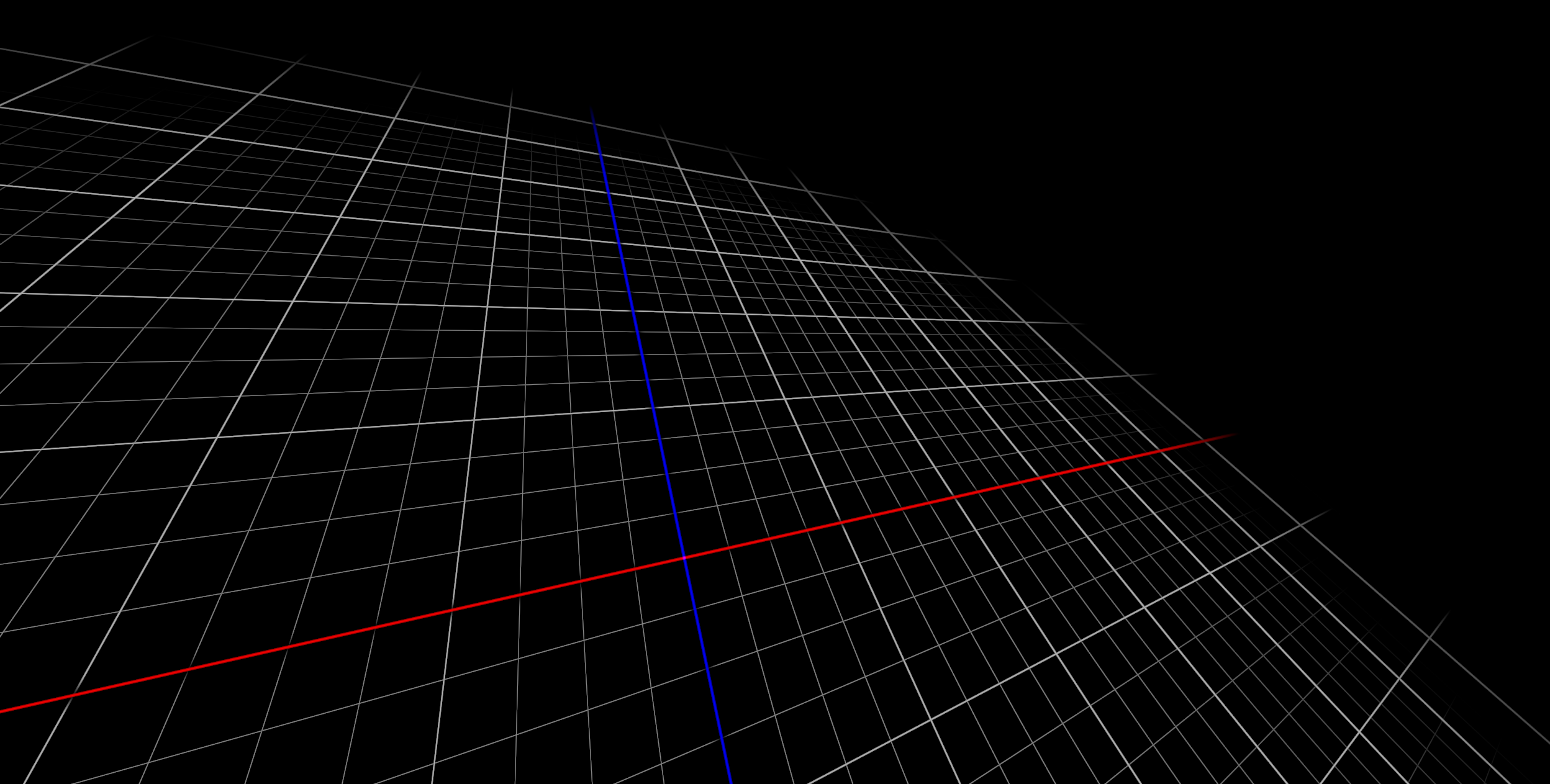

Un-limited ~~powah!~~ grid.

Read on to find out exactly how that image is rendered.

Implementation

This discussion will be using some Vulkan terminology, and the shader code is in Slang, but it should all be trivial to translate to other languages and APIs.

First of all, it's an infinite plane. It doesn't have any real geometric structure, so it doesn't need vertex buffers and so on. To kick this off, I just bind the pipeline and kick off a vkCmdDraw for 4 vertices (since what I want is logically a quad). The pipeline uses a triangle fan topology, but this could just as well have been a triangle strip (with appropriate adjustments in the vertex shader).

The vertex shader

// The width, in world-space units, of one grid cell.
static const float GridSize = 0.5;
// The number of minor grid lines between each major.
static const uint GridMinorsPerMajor = 4;

struct FragIn
{
	float4 Position : SV_Position;
	float2 GridCoord;
	float3 ViewPos;
};

[shader("vertex")]
FragIn vert(uint vertexId: SV_VulkanVertexID)
{
	var bit0 = vertexId & 0x1;
	var bit1 = (vertexId & 0x2) >> 1;

	var mPos = float2(
		// 0, 1, 1, 0
		bit0 ^ bit1,
		// 1, 1, 0, 0
		1 - bit1);
	mPos = mPos * 2 - 1;
	mPos = mPos * Fog.FarDistance;
	mPos = mPos + ViewTransform.InvView._14_34;

	var wPos = float3(mPos.x, 0, mPos.y);

	FragIn out;

	out.Position = mul(ViewTransform.ProjView, float4(wPos, 1));

	out.GridCoord = wPos.xz / GridSize + 0.5;
	out.ViewPos = mul(ViewTransform.View, float4(wPos, 1));

	return out;
}

Alright, what's going on here?

Finding the quad's corners

First, I need to compute the coordinates of the corners of my quad. I begin by turning our vertex ID into a coordinate on a 1x1 unit square extending from \((0, 0)\) to \((1, 1)\).

var bit0 = vertexId & 0x1;
var bit1 = (vertexId & 0x2) >> 1;

var mPos = float2(
	// 0, 1, 1, 0
	bit0 ^ bit1,
	// 1, 1, 0, 0
	1 - bit1);

Then I scale and translate to turn that into a 2x2 square centered on the origin, extending from \((-1, -1)\) to \((1, 1)\).

mPos = mPos * 2 - 1;

Next I scale up the quad to cover all the pixels I need to render. I want my quad to fade out at the edges as if it's disappearing into a "fog", so I just scale by the fog range:

mPos = mPos * Fog.FarDistance;

Fog just holds my fog distance parameters. Fog.NearDistance is where things start fading out, Fog.FarDistance is the range at which they're fully faded.

Placing the quad

And finally I want the plane to always be centered directly under the camera:

mPos = mPos + ViewTransform.InvView._14_34;

Okay, that needs some explaining. ViewTransform.InvView is my inverse-view matrix (it hangs out with Fog somewhere in a uniform buffer). That is, it transforms from view space to world space. In view space, the camera is located at the origin, \(0\), so multiplying that through the inverse-view matrix produces world-space coordinates:

\[ \begin{split} C_w &= V^{-1}0 \\ &= \begin{bmatrix} V^{-1}_{11} & V^{-1}_{12} & V^{-1}_{13} & V^{-1}_{14} \\ V^{-1}_{21} & V^{-1}_{22} & V^{-1}_{23} & V^{-1}_{24} \\ V^{-1}_{31} & V^{-1}_{32} & V^{-1}_{33} & V^{-1}_{34} \\ 0 & 0 & 0 & 1 \\ \end{bmatrix} \begin{pmatrix} 0 \\ 0 \\ 0 \\ 1 \end{pmatrix} \\ &= \begin{pmatrix} V^{-1}_{14} \\ V^{-1}_{24} \\ V^{-1}_{34} \\ 1 \end{pmatrix} \end{split} \]

In this case, I want the plane flat on the floor, so I don't need the \(y\)-coordinate, so I just grab the _14_34 swizzle to extract the \(x\) and \(z\). Adding that to my quad's corners works as expected because the quad was centered on the origin in the first place and now it's centered under the camera.

(For those not used to Slang, it follows HLSL notation, so matrix entries are named and accessed with row-major subscripts, as in standard mathematical notation. This doesn't mean they're stored row-major.)

Here I'm also being a bit loose with my m prefix. mPos at this point is somewhere between being a model-space and world-space position. Think of it as a model-space where the artist had prophetic powers and knew where the camera would be and just modeled the quad under that.

With that done, the quad will happily follow the camera wherever it goes. It's time to convert the that to proper world space.

var wPos = float3(mPos.x, 0, mPos.y);

Why all this mucking about with world space? Surely this could all just have been done in view space. Well, yeah, kind of. Getting a quad centered under the camera would have been easier if I'd worked in view space, but I'd still need the world-space coordinates because the lines that I'm going to draw on that quad need to be pinned to that space, specifically.

Preparing to rasterize and shade

Speaking of the fragment shader, it's time to start setting up for rasterization and shading:

FragIn out;

out.Position = mul(ViewTransform.ProjView, float4(wPos, 1));

out.GridCoord = wPos.xz / GridSize + 0.5;
out.ViewPos = mul(ViewTransform.View, float4(wPos, 1));

return out;

The calculation of out.Position is just the standard world-to-clip transformation.

Then the shader takes the world position of the plane and scales it so that integer coordinates mark out the grid lines. That value is then offset by half a grid unit so that the grid lines pass where either the x or y value is \(0.5\). Why? Well, it simplifies a bit of math down in the fragment shader, which receives the computed value through out.GridCoord.

Finally, the fragment shader will still need the view-space coordinates so that it can fog things up correctly.

The fragment shader

This shader has a lot more going on, but it's actually just a bunch of simple stuff stacked up in a trenchcoat, pretending to be complex.

[shader("fragment")]
float4 frag(in FragIn in)
	: SV_Target
{
	// figure out our fogging values
	var viewDist = length(in.ViewPos);
	var majorFog = Fog.Fade(viewDist);
	var minorFog = Fog.ScaledFade(viewDist, float2(0.5, 0.85));

	// find the index of the closest grid line to this pixel
	var lineIndex = (int2)floor(in.GridCoord);

	// pick an appropriate width and color for the closest line (in *each* of X and Y!)
	float2 lineWidth;
	float3[2] lineColor;
	float2 lineFog;
	for (var i = 0; i < 2; i++)
	{
		float width;
		float3 color;
		float fog;

		if (lineIndex[i] == 0)
		{
			width = 5;
			color = GetKeyColor(1 - i).rgb;
			fog = majorFog;
		}
		else if (lineIndex[i] % GridMinorsPerMajor == 0)
		{
			width = 3;
			color = 0.5;
			fog = majorFog;
		}
		else
		{
			width = 2;
			color = 0.25;
			fog = minorFog;
		}

		lineWidth[i] = width;
		lineColor[i] = color;
		lineFog[i] = fog;
	}

	var lineDist = abs(0.5 - frac(in.GridCoord)) * 2;
	var lineMask = 1 - saturate(lineDist /
		(fwidth(in.GridCoord) * lineWidth));

	var blendFactors = lineMask * lineFog;
	for (var i = 0; i < 2; i++)
		if (lineIndex[1 - i] == 0 && lineIndex[i] != 0)
			blendFactors[i] *= smoothstep(0, 0.5, lineDist[1 - i]);

	var finalColor = max(lineColor[0] * blendFactors.x, lineColor[1] * blendFactors.y);

	return float4(finalColor, 1);
}

Let's break this down:

Fog

The first thing here is pair of quick fogging calculations. This yields a blending factor that I can use to fade out the lines before they hit the edges of the quad (or worse, get too crowded in the distance).

var viewDist = length(in.ViewPos);
var majorFog = Fog.Fade(viewDist);
var minorFog = Fog.ScaledFade(viewDist, float2(0.5, 0.85));

Fog.Fade and Fog.ScaledFade are just a couple of utility functions that call smoothstep:

//1 - smoothstep(NearDistance, FarDistance, value)
public float Fade(float value)
{
	return 1 - smoothstep(NearDistance, FarDistance, value);
}

//scales the near and far fog distances by fogScale.x and .y, respectively
//and then applies the regular Fade equation
//undefined if fogScale.x > fogScale.y
public float ScaledFade(float value, float2 fogScale)
{
	return 1 - smoothstep(NearDistance * fogScale.x, FarDistance * fogScale.y, value);
}

Why two different fade factors? Well, I want the minor grid lines to vanish before the major ones go, so I need two fade factors.

Finding out where the current pixel is in grid space

// find the index of the closest grid line to this pixel
var lineIndex = (int2)floor(in.GridCoord);

Simple! Remember when I said the extra math in the vertex shader's GridCoord calculation was going to simplify some stuff? That's one of the stuff.

How does this work, exactly? Well, think about the origin. The division by GridSize didn't move it at all, but adding \(0.5\) does, and the origin is now at \((0.5, 0.5)\). But when takeing the floor of that value, the result is \(\lfloor(0.5, 0.5)\rfloor = (0, 0)\), as expected. But what about values near the line?

Without the shift by \(0.5\), there's a problem:

\[ \begin{split} \lfloor(0.1, 0.1)\rfloor &= (0, 0) \\ \lfloor(0, 0)\rfloor &= (0, 0) \\ \lfloor(-0.1, -0.1)\rfloor &= (-1, -1) \end{split} \]

Oops! Can't have pixels just to the left of the center line registering as being part of the next grid line over! With the shift, things work as they should:

\[ \begin{split} \lfloor(0.1 + 0.5, 0.1 + 0.5)\rfloor = \lfloor(0.6, 0.6)\rfloor &= (0, 0) \\ \lfloor(0 + 0.5, 0 + 0.5)\rfloor = \lfloor(0.5, 0.5)\rfloor &= (0, 0) \\ \lfloor(-0.1 + 0.5, -0.1 + 0.5)\rfloor = \lfloor(0.4, 0.4)\rfloor &= (0, 0) \end{split} \]

Figure out how to draw the line

Now that the shader knows which line it's on, it needs to figure out what that line should look like.

There are three cases:

The axes should be colorful and bold.
Every GridMinorsPerMajorth line should be a bit brigher and a touch bolder.
Every other line is a minor line that should be dim and unobtrusive. These lines also fade out earlier than the major lines and the axes.

// pick an appropriate width and color for the closest line (in *each* of X and Y!)
float2 lineWidth;
float3[2] lineColor;
float2 lineFog;
for (var i = 0; i < 2; i++)
{
	float width;
	float3 color;
	float fog;

	if (lineIndex[i] == 0)
	{
		width = 5;
		color = GetKeyColor(1 - i).rgb;
		fog = majorFog;
	}
	else if (lineIndex[i] % GridMinorsPerMajor == 0)
	{
		width = 3;
		color = 0.5;
		fog = majorFog;
	}
	else
	{
		width = 2;
		color = 0.25;
		fog = minorFog;
	}

	lineWidth[i] = width;
	lineColor[i] = color;
	lineFog[i] = fog;
}

Now there's one important thing to note here: the shader works in terms of the coordinates that define a line. And these run perpendicularly to the line itself (since the line covers all parallel coordinate values). Or another way of saying that: the line whose bounds are found by scanning along the x-coordinate runs parallel to the y axis (and has no bounds along y).

This is why the call to GetKeyColor (which does exactly what you think it does) uses 1 - i as its index: the axis line bounded by changes in the x is the y-axis, and it needs the correct color for that one.

Finding the edges of the lines

Now that lineWidth is available, it's time to figure out whether the current pixel is actually in its nearest line or not.

This will need some discussion:

var lineDist = abs(0.5 - frac(in.GridCoord)) * 2;
var lineMask = 1 - saturate(lineDist /
	(fwidth(in.GridCoord) * lineWidth));

The first thing to note, is that those expressions are computing float2 values. That is, the math is checking both the x and the y coordinates at the same time.

Computing `lineDist`

First, there's lineDist, which is the distance(ish) from the center of the nearest line (lineDist.x is the distance to the nearest line parallel to the y-axis, and lineDist.y is the same for the nearest x-parallel line). Why is that * 2 in there? I dunno, it looks good. Don't overthink it.

How does this work? Well, let's consider the y-axis. Pixels belonging to it will be some small distance in x away from \(0.5\). (Why \(0.5\)? This is that offset from the vertex shader helping out again.)

The first thing that happens is the shader computes the fractional part of that coordinate. That is, it takes just the decimals. Mathematically, this looks like subtracting the floor of the value from the value. Then that's subtracted from \(0.5\) (again, that's our coordinate shift in action), producing a signed distance which is converted into a regular distance by taking the absolute value.

Let's see what that looks like near the y-axis (defined by looking at x-coords):

\[ \begin{split} \mathit{dist}(x) = |0.5 - (x - \lfloor x \rfloor)| \\ \mathit{dist}(0.1 + 0.5) = \mathit{dist}(0.6) = |0.5 - 0.6| &= 0.1 \\ \mathit{dist}(0 + 0.5) = \mathit{dist}(0.5) = |0.5 - 0.5| &= 0 \\ \mathit{dist}(-0.1 + 0.5) = \mathit{dist}(0.4) = |0.5 - 0.4| &= 0.1 \\ \end{split} \]

There, nice and symmetrical.

Computing `lineMask`

var lineMask = 1 - saturate(lineDist /
	(fwidth(in.GridCoord) * lineWidth));

This is the tricky one. It's called the line mask because this is what defines the boundary of the line. If it's one, the pixel is on the line. If it's zero, the pixel is outside the line. Values in between mean it's near the line and that a bit of antialiasing should take place.

Starting from the inside of the saturate function:

lineDist / (fwidth(in.GridCoord) * lineWidth)

What's going on here? Well, this expression needs to have a small value near the line and a large value away from the line (because it'll be subtracted from \(1\) to make the mask). And lineDist already does that. So all that's really needed is to scale lineDist by some value and job done.

But these are lines. Their thickness shouldn't vary with distance from the camera or at glancing angles, so the scale factor needs to take into account the orientation of the quad surface to the pixel being rendered. So the scaling factor needs to be larger up close (which exaggerates lineDist and makes the line center appear farther away from the current pixel, thus thinning the line when it's right up against the camera) and smaller in the distance (which does the opposite, shrinking the apparent distance to the line and making more pixels shade as if they are inside it).

That scaling factor is produced by borrowing some of the magic silicon that powers texture filtering (specifically, the bit that does the math for mip-selection), fwidth. What does fwidth do? It calculates an approximate screen-relative derivative of whatever value you pass to it. You can think of it as computing the difference in the given value for this pixel as compared to the same value for (one of) its neighbors (and that's almost certainly how your GPU will actually compute it).

By taking the screen-space derivative of a smoothly varying value such as GridCoord (and really any smoothly varying value would have done, up to a difference of some constant factor), the shader produces numbers which are small up close and large far away. Why? Well, up close the value changes less from one pixel to the next because the object's all zoomed in, so adjacent pixels map to points which are closer together on the surface. Far away where perspective transformation has made the surface render smaller, so neighboring pixels correspond to surface patches which are farther apart, and thus the value will have changed more.

Multiplying that value by lineWidth just exaggerates the effect.

But the effect is backwards: fwidth is bigger in the distance and smaller up close when it must be small in the distance and large up close. And it needs to vary over that distance not linearly, but in a manner which cancels out the perspective transformation. So for those reasons, the shader divides by the scaled fwidth.

And that's still backwards because the expression is small near the line and big away from it when the goal is to make a mask which is bigger on the line and small away from it. That's what the rest of the expression is for:

var lineMask = 1 - saturate(lineDist /
	(fwidth(in.GridCoord) * lineWidth));

Clamping the scaled lineDist value to \([0, 1]\) (which is what saturate does) and subtracting it from \(1\) then yields exactly the desired mask.

Putting it all together

Almost there, I promise. All that's left is to deal with the fact that a pixel can fall on more than one grid line.

var blendFactors = lineMask * lineFog;
for (var i = 0; i < 2; i++)
	if (lineIndex[1 - i] == 0 && lineIndex[i] != 0)
		blendFactors[i] *= smoothstep(0, 0.5, lineDist[1 - i]);

var finalColor = max(lineColor[0] * blendFactors.x, lineColor[1] * blendFactors.y);

return float4(finalColor, 1);

Quick recap:

Any pixel has the potential to be part of up to two grid lines, and thus to have color contributed to it by each of those lines.
lineMask tracks whether the pixel is in or out of its nearest two grid lines.
- lineMask.x is nonzero along lines parallel to the y-axis and zero elsewhere.
- lineMask.y, similarly, is nonzero along the x-axis and zero elsewhere.
The two lines contributing to the pixel may have different fog values applied to them. Each contributing line's fog factor is tracked in lineFog's x and y components.
A pixel may thus have color contributed to it by up to two lines, and those colors are tracked in lineColor.

With those inputs, the final color is computed by scaling and adding together the two contributing colors (trusting lineMask and lineFog to scale the colors to black wherever they shouldn't be visible).

The simple approach to computing the scaling factors is just this:

var blendFactors = lineMask * lineFog;

That works, but it looks silly near the axes since the gray gridlines overpower the monochromatic axes and appear to be in front of the axes. To prevent that, an additional correction is applied:

for (var i = 0; i < 2; i++)
	if (lineIndex[1 - i] == 0 && lineIndex[i] != 0)
		blendFactors[i] *= smoothstep(0, 0.5, lineDist[1 - i]);

It looks complicated but it really isn't. Read it as follows:

For each of the two gridlines which may be part of this pixel:
If the other contributing gridline is an axis, and the current one is not an axis,
dim the current gridline by an amount proportional to how close it is to the axis line.

And with the blendFactors ready, the shader mixes the contributing colors and ~~declares victory~~ returns the final pixel color:

var finalColor = max(lineColor[0] * blendFactors.x, lineColor[1] * blendFactors.y);

return float4(finalColor, 1);

Why take the (component-wise) max of the two instead of adding them together? Well, adding them produces distracting bright spots at all the grid intersections, and max is both cheap and it looks good. Who needs more reason than that?

Slangisms

Finally, I'll explain a couple of Slangisms that might look a little odd here.

SV_VulkanVertexID

FragIn vert(uint vertexId: SV_VulkanVertexID)

Why SV_VulkanVertexID and not just the more familiar (at least to HLSL enjoyers) SV_VertexID? Well, HLSL specifies that SV_VertexID behaves differently from the nearest SPIR-V builtin when rendering is instanced. So Slang, which is committed to staying close enough to HLSL, has to emulate the behavior by binding to two builtins and subtracting one from the other in the body of the shader. Specifically, it's having to subtract BaseVertex from VertexIndex. And that BaseVertex SPIR-V builtin isn't baseline required functionality in Vulkan, so the capability has to be enabled using VkPhysicalDeviceVulkan11Features::shaderDrawParameters, which is an annoying hoop to have to jump through just to get a simple vertex ID.

You can read more about the mapping between Slang's SV_ variables and the underlying SPIR-V features here in the Slang docs.

Structured types? Functions?

This is a VR project, and, because it uses multiview rendering, the uniform buffer is a bit gnarly. I also keep changing my mind about its layout and whether certain things should go in other uniform buffers or push constants or...

In order to avoid having to edit every shader every time I muck with this stuff, I have it all tucked away behind a clean interface in a Slang module. Here's what some of that actually looks like:

public struct ViewMatrices
{
	public float4x4 ProjView;
	public float3x4 View;
	public float3x4 InvView;
	public float4x4 Proj;
	public float4x4 InvProjView;
}

struct _SceneParams
{
	ViewMatrices ViewTransforms[2];
	uint4 KeyColors[2];
	float2 Fog; // x = near dist, y = far dist
};

[vk::binding(0, 0)]
[EngineBinding]
uniform ConstantBuffer<_SceneParams> _sceneParams;

in uint _viewportIndex : SV_ViewID;

public property ViewMatrices ViewTransform
{
	get { return _sceneParams.ViewTransforms[_viewportIndex]; }
}

public namespace Fog
{
	public property float2 NearAndFarDistance { get { return _sceneParams.Fog; } }

	public property float NearDistance { get { return _sceneParams.Fog.x; } }
	public property float FarDistance { get { return _sceneParams.Fog.y; } }

	//1 - smoothstep(NearDistance, FarDistance, value)
	public float Fade(float value)
	{
		var p = _sceneParams.Fog;
		return 1 - smoothstep(p.x, p.y, value);
	}

	//scales the near and far fog distances by fogScale.x and .y, respectively
	//and then applies the regular Fade equation
	//undefined if fogScale.x > fogScale.y
	public float ScaledFade(float value, float2 fogScale)
	{
		var p = _sceneParams.Fog * fogScale;
		return 1 - smoothstep(p.x, p.y, value);
	}
}

Isn't that neat?

Weird array syntax, bro

float3[2] lineColor;

That just means this:

float3 lineColor[2];

I don't know why I like it better than the C-ish syntax, but I do. Maybe because it reminds me of float2x3 (in a weirdly transposed sort of way).

Indexing vectors?

This isn't even a Slangism, HLSL can do the same thing, but it doesn't seem to show up much online, so it's worth calling out. It works as you expect, v[1] is the same as v.y.

Lone Henchman
